  • MANHATTAN BRIDGE

    MANHATTAN BRIDGE

    New York, New York

    GC: Koch Skanska, Carteret, New Jersey
    Architect: New York Department of Transportation, New York

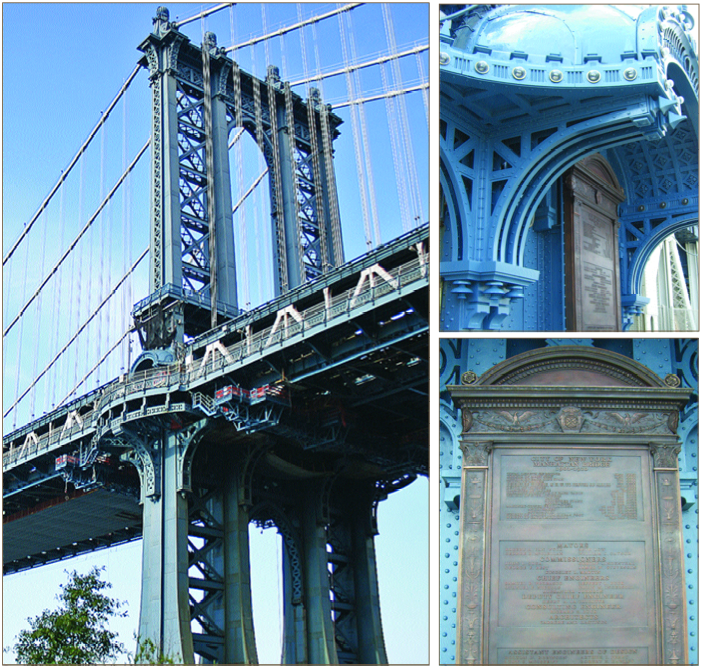

    The Manhattan Bridge is one of three suspension bridges that cross the East River connecting Lower Manhattan with Brooklyn. It was the last of the three suspension bridges built across the lower East River, following the Brooklyn and Williamsburg Bridges. The Manhattan Bridge was opened to traffic on December 31, 1909. The bridge was designed and built by Polish bridge engineer Ralph Modjeski with deflection cables designed by Leon Moisseiff. The original pedestrian walkway on the south side of the bridge was reopened after sixty years in June of 2001. Allen Architectural Metals Inc. was responsible for the re-creation of the pedestrian canopies located on both sides of the bridge approximately 1/4 mile from both entrances.

    The four 20’x 25’cast iron and steel canopies Allen re-created were originally designed to protect pedestrians during inclement weather while crossing the bridge. The canopies also house the re-creations of the original cast bronze plaques that give bridge specifications, architects, engineers and dates. These massive bronze plaques were meticulously crafted in high relief and fine details. There are a total of four canopies for the bridge, each housing one of the four 10’x 5’ bronze plaques. Each of the canopies was fully assembled at the com- pany’s production facility then dismantled, finished and shipped back to the city for anchorage to the bridge. Today they are impressive and functional as they are an integral part of the Manhattan Bridge and skyline.
